Datsun 1000 tail lights vary by model and country.

Contents

Side Lights

Datsun 1000 front guard was fitted with different indicator lamp lenses depending on the year.

20452.jpgAlbum 20452

1967 Model: Small Round dome type
26161-18000 LENS-lamp

Type 180 - 1967 & the first 26 1968s
6430.jpgAlbum 6430 5285.jpgAlbum 5285 11623_49f98a18be30e.jpgUpload click to view 27312.jpgAlbum 27312

1968-1969: Short spear (about 10cm long) same as early Datsun 521
26161-25700 LENS-lamp (from C/# B10-80026, VB10-84001)

Type 257 - 1968-1969
2207.jpgAlbum 2207 18633.jpgAlbum 18633 27176.jpgAlbum 27176

1970: Long spear (13cm+). Same as Datsun 510 "1600"
26161-A4600 LENS-lamp (from C/# B10-350001, VB10-240001, KB10-80001, B20-61001)

Type A46 - 1970
9721.jpgAlbum 9721 4248.jpgAlbum 4248 17618.jpgAlbum 1761819850.jpgAlbum 19850

* Replaces spear A
Same as JDM & ADM 510s
1317178033623099527.jpg]

Coupes uses same lense as others, but the assembly (lamp housing) is different for Coupe.

1967 round type looks similar to 1969 Datsun 510 rear USA (EVER WING A3036 SAE P167), but this is much flatter (the B10 lens sticks out quite a bit).

Similar to Datsun 410 side lamp

1968-1960 short spear looks identical to USA Datsun 521 part number 26160-B0101

The 1970 long spear looks similar to USA 510, but those are asymmetric:
* 26161-21000 ASSY LENS WITH RIM RH 1068- 510 USA
* 26166-21000 ASSY LENS WITH RIM LH -0969 510 USA
21088.jpgAlbum 21088

BULB 12V-6W 26073-30001 <> 26715-89900
26161-18000 LENS-lamp 2 ALL (exc. Coupe)
* 26160-18000 ASS'Y-LAMP, side marker [round type]
26161-25700 LENS-lamp 2 ALL [10cm short spear]
* 26160-27700 ASS'Y-LAMP, side marker ALL (exc. Coupe)
* 26160-25701 ASS'Y-LAMP, side marker Coupe
26161-A4600 LENS-lamp 2 ALL [13cm long spear]
* 26160-H0110 ASS'Y-LAMP, side marker ALL (exc. Coupe)
* 26160-H0310 ASS'Y-LAMP, side marker Coupe

Front Lights

Datsun 1000 was fitted with clear lens front combination lamp (park + indicators), using an orange bulb for the indicator portioin.

28378.jpg#coupe 15960.jpg#truck

Sedan

Sedan Turn signal inner lens

20674.jpgAlbum 20674

Australia

Aussie models had a orange bulb offset to the inside of the lens.

FRONT PARKING & TURN SIGNAL LAMP
* Coupe: Below bumper
* Sedan: Above bumper
PARKING & TURN SIGNAL LAMP ASSY
H03 Coupe
209 Sedan, Wagon, Ute 1967
277 Sedan, Wagon, Ute 1968-1970

Sedan

Sedan clear rectangular lens

26120-20908 ASSY=LAMP,PARKING & TURN SIGNAL RH (TO SEP-'67)
26125-20908 ASSY=LAMP,PARKING & TURN SIGNAL LH (TO SEP-'67)

1967
27295.jpgAlbum 27295

26126-20900 LENS=TURN SIGNAL RH CLEAR (TO SEP-'67)
26127-20900 LENS=TURN SIGNAL LH AMBER (TO SEP-'67)

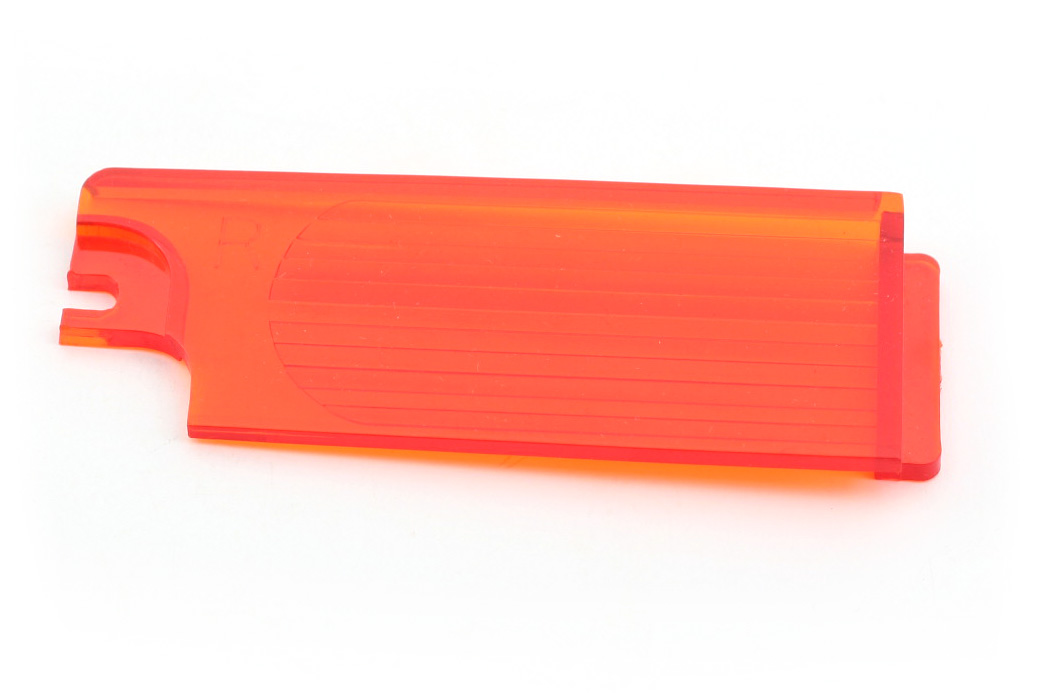

1967 Right 26122-20900, Right Amber Lens

26120-27751 ASSY=LAMP,PARKING & TURN SIGNAL RH (FROM OCT-'67)
26125-27751 ASSY=LAMP,PARKING & TURN SIGNAL LH (FROM OCT-'67)

1968
4506.jpgAlbum 4506

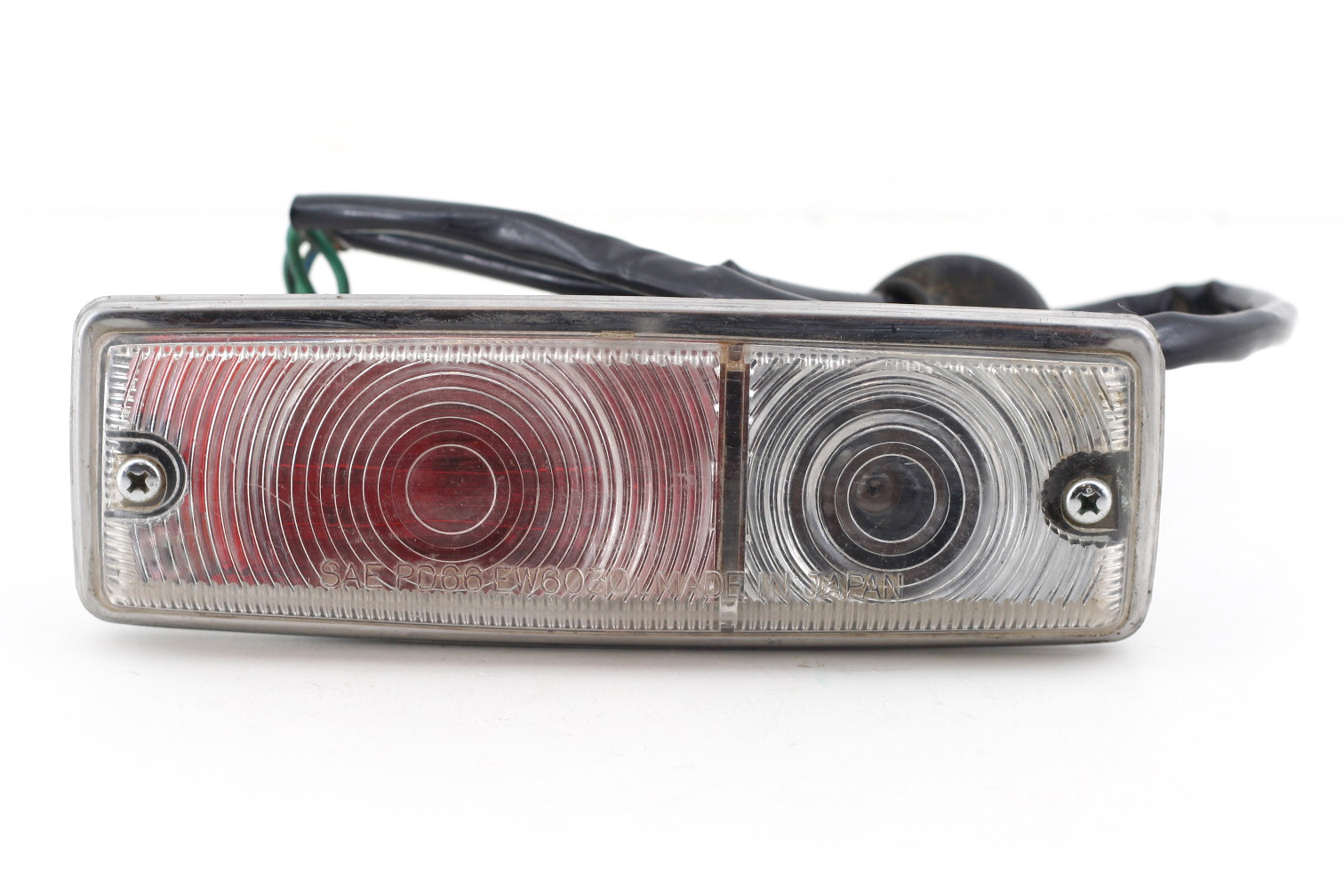

26125-27750 'EVER WING EW0603L'

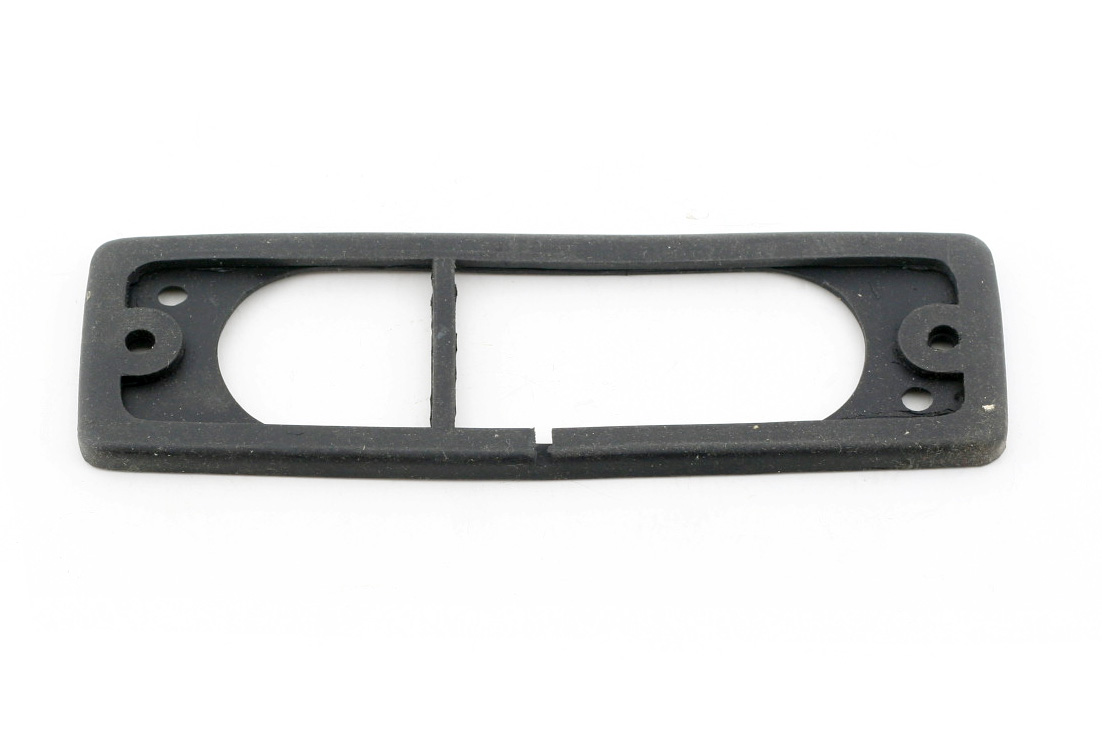

26123-27750, Right Gasket

1968
3538.jpgAlbum 3538

1969
13867.jpgAlbum 13867

1969-1970
11617.jpgAlbum 11617

Coupe

Coupe front lights
* 257 Early: Large Amber lens
* H03 Late: 2-section (amber + clear)

Type 257 Early Coupe: Large Amber lens
12215.jpgAlbum 12215

Late Coupe: 2-section (amber + clear)
4321.jpgAlbum click to view

PARKING & TURN SIGNAL LAMP ASSY
26120-H0300 RH COUPE
26125-H0300 LH COUPE
26120-25702 Right
26125-25702 Left

257
15066.jpgAlbum click to view 28378.jpgAlbum 28378 12215.jpgAlbum 12215 28379.jpgAlbum 28379

26126-25702 LENS LH

初代 サニー クーペ KB10 フロントレンズ

Ute

15960.jpgAlbum 15960 Headdlights%20and%20grill.jpg

Export B20 (B20U) introduction

Japan

Japan-market. Clear lens with centered orange bulb.

EXCEPT COUPE ASS'Y-LAMP, & turn signal
* all Ichiko 市光 except as noted
26120-18000 RH
26125-18000 LH
26120-18010 Koito 小糸 (2, left and right identical)
 (up to C/# B10-80025, VB10-84000)
26120-27701 RH
26125-27701 LH
26120-H0110 LH
26125-H0110 LH
11775.jpgAlbum 11775

26121-18000 LENS-parking & turn signal (2)
b10winkb.jpg 26121-18000.jpg 26121-18000a.jpg 15217b.jpg 20701.jpgAlbum 20701

COUPE LENS-parking & turn signal
26120-25703 RH
26125-25703 LH
26120-H0310 RH
26125-H0310 LH
6674.jpgAlbum 6674

Position

Sedan, Van, Ute: Fitted above the bumper
8363.jpgAlbum 8363 1263.jpgAlbum 1263 15934.jpgAlbum 15934

Coupe: Fitted below the bumper
7822.jpgAlbum 7822 4585.jpgAlbum 4585

Tail Lights

Datsun 1000 rear lamps were combination type (park, stop, and reverse lamps in one "Combination Lamp").

6431.jpg#sedan 20700.jpg#sedan 26550-H0103.jpg#H01

6146.jpg#coupe 20704.jpg#truck

6877.jpg#wagon 6904.jpg#1968 8337.jpg#1969

Sedan

B10 Sedan rear lamps came in early and late styles.

1966-1968 reverse in center
6431.jpgAlbum 6431
1969-1970 reverse inside, extra wide

180 type: 1966-1969
P1170995.jpg 13178.jpgAlbum 13178

H01 type: 1970 (from October 1969)

180 Amber inside
2196.jpgAlbum 2196 3541.jpgAlbum 3541

180 Red inside
20700.jpgAlbum 20700 10949.jpgAlbum 10949

H01 reverse lens inside
b10lens.jpg 5620.jpgAlbum 5620 16322.jpgAlbum 16322 16494.jpgAlbum 16494

H01 type

H01 lenses
6429.jpgAlbum 6429 B10a.jpg B10b.jpg H01a.jpg H01b.jpg H01c.jpg b10tla.jpg b10tlb.jpg b10tlc.jpg 26546-H0102-.jpg 26546-H0102.jpg 26546-H0102_.jpg

Coupe

KB10 taillights

6146.jpgAlbum 6146 4243.jpgAlbum 4243 4244.jpgAlbum 4244 4454.jpgAlbum 4454 6432.jpgAlbum 6432 8824.jpgAlbum 8824 18864.jpgAlbum 18864

13699.jpgAlbum 13699

Wagon

VB10 lamp

1967 (except Australia)
6877.jpgAlbum 6877 vb10ra.jpg vb10rb.jpg vb10rc.jpg

1968 (to September 1968), also 1967 Australia
3229.jpgAlbum 3229 6904.jpgAlbum 6904

1969-1970 (from October 1968)
8337.jpgAlbum 8337 3205_.jpg

182 1967 Red + Red
209 1967 Red + Amber Australia
209 1968 Red + Amber
H04 1969-1970 Amber + Red + Clear
Reverse Lamp
1967-1968 Deluxe had separate lamp
1969-1970 Lower portion of tail lamps

1967 - note reverse lamp under right side of bumper

1969-1970 seperate lenses
3205_.jpg VB10tl.jpg VB10tl1.jpg

26536-H0401 center lens

Pickup

B20 Pickup
17615.jpgAlbum 17615 19847.jpgAlbum 19847

20704.jpgAlbum 20704 26551-15401.jpg

19847.jpgAlbum click to view
