[Datsun 1200 encyclopedia]

Compressor brackets

From Datsun 1200 Club

Datsun 1200 encyclopedia | Recent changes | Edit this page | Page history | Switch to MediaWiki mode

Printable version | Disclaimers | Privacy policy
Category: Heating And Ventilation Systems

Various types of brackets were used over the years to fix the aircon compressor to the engine. Early A12 and late A12 brackets differ. You can make your own brackets, buy used from a 1200 or 210/B310 or A-engined Cherry/Pulsar/Vanette, or buy new.

Contents

Overview

The engine parts needed for aircon are 1) Compressor 2) Compressor bracket 3) Crankshaft Pulley and 4) V-belt

B110 1970-1976 All custom, various types
B120 1978-1979 Factory high-idler mount
B120 1980-     Factory low-idler pulley mount

A bracket can be fabricated of two 8mm strips of metal (going across) and two vertical strips to connect to the compressor. An idler pulley can be added from a Nissan or other vehicle.

High-mount idler | Low-mount idler
20088.jpgAlbum click to view 20089.jpgAlbum click to view

Index

Factory brackets
17554_5806e018e2f44.jpg#H86 18710.jpg#H74 24729.jpg#H74

23103.jpg#York 25501.jpg#B210 17554_5806e01fac29e.jpg#120Y 174_5cbac66ecc7e8.jpg#210

20079.jpg#1979 cb1.jpg#1979 cb3.jpg#1979

593072-5300.jpg#vanette1C120_A15_ac2.jpg#vanette1

Early Engine

Compressor on early A12 (1970-1973, front-mount distributor type)

Custom install on right-side, battery moved to trunk, compressor place just above oil pump. Mounted like an alternator with no idler pulley
CIMG2332_convert_20090616103747.jpg acb.jpg

This in an Australia 1200. It uses a humongous bracket to space the compressor out past the low-mounted alternator.
9377.jpgAlbum click to view 9378.jpgAlbum click to view

15371.jpgAlbum click to view

Here is a USA 1200 with a slightly different setup:
2185.jpgAlbum click to view 16244.jpgAlbum click to view

Uncommon Right-side compressor mount
14950.jpgAlbum click to view 14953.jpgAlbum click to view

Late Engine

For late model A12 (1974-up, mid-distributor type).

unknown bracket
13822_55619c6b37967.jpgPost click for topic 13822_543ba7b1b39af.jpgPost click for topic

Custom bracket for modern short compressor, made out of 6mm stock
20120628221909a02.jpg 20120701101711062.jpg

close-ear H86 from B310 (1981-1982)
174_5806b82922ab6.jpgPost click for topic 17554_5806e018e2f44.jpgPost click for topic

wide-ear H74 from B310
24729.jpgAlbum click to view 18710.jpgAlbum click to view

1978 Factory Bracket

Old compressor type (York-type)
21822.jpgAlbum click to view 23103.jpgAlbum click to view

1979

Starting august 1979 -- New Compressor-type


210

B310 Datsun 210 USA with York compressor

AC bracket 11910-H9900
174_5cbac66ecc7e8.jpgPost click for topic

174_5cbac6634c1cc.jpgPost click for topic

Unicla

1977 Unicla compressor mount
25585.jpgAlbum click to view 25586.jpgAlbum click to view

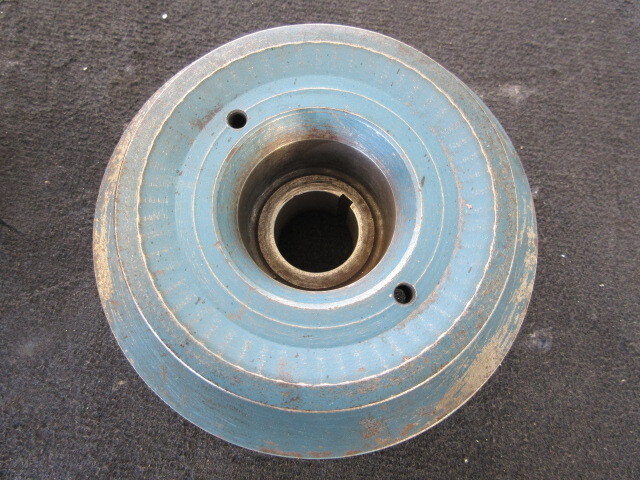

idler pulley
pulley-1.jpg pulley-2.jpg

Piston Compressor

Found on a JDM E-HB310 (A14, 1979?), does not appear to be a factory bracket or compressor
28742.jpgAlbum click to view 28743.jpgAlbum click to view 28744.jpgAlbum click to view

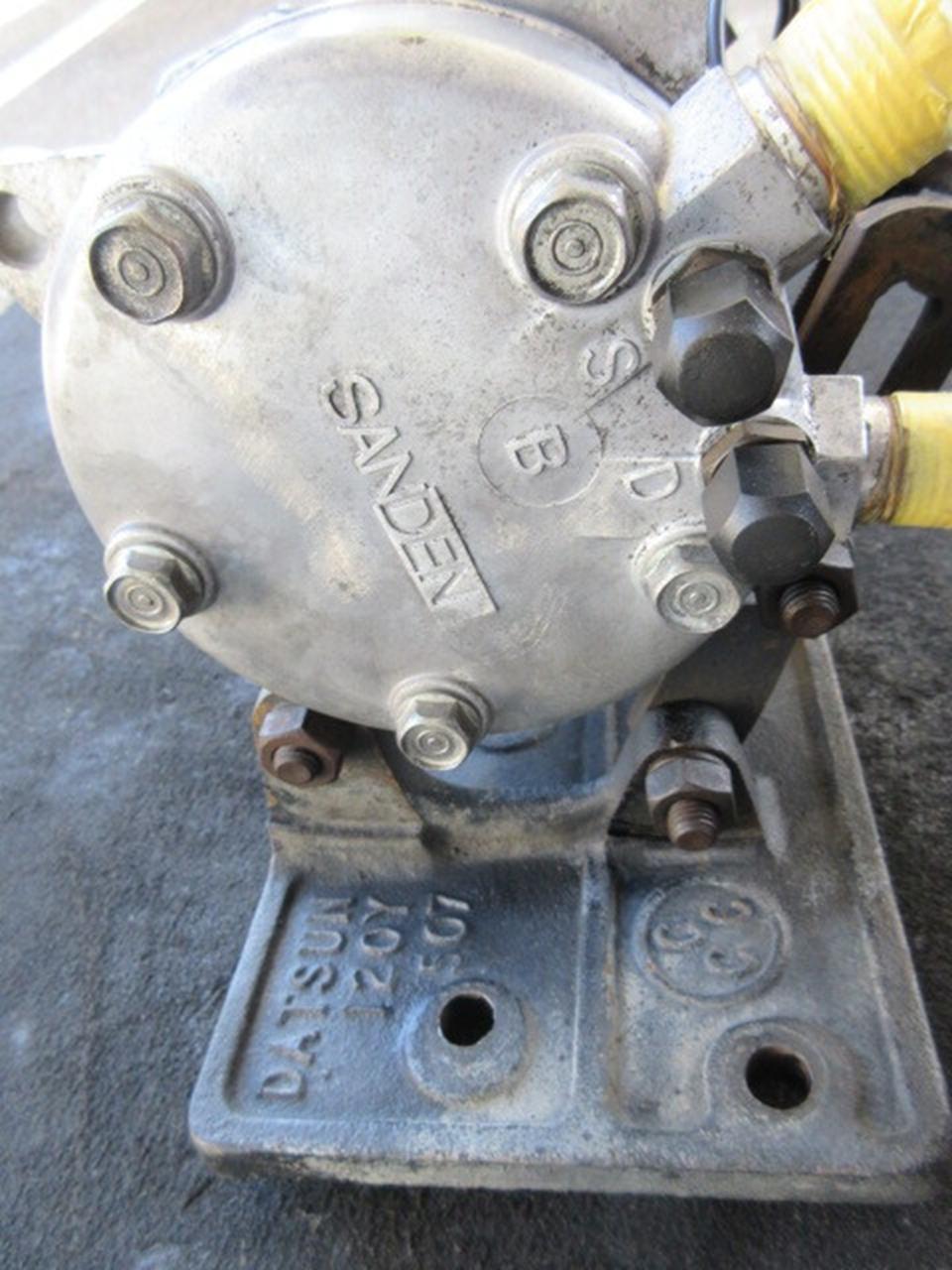

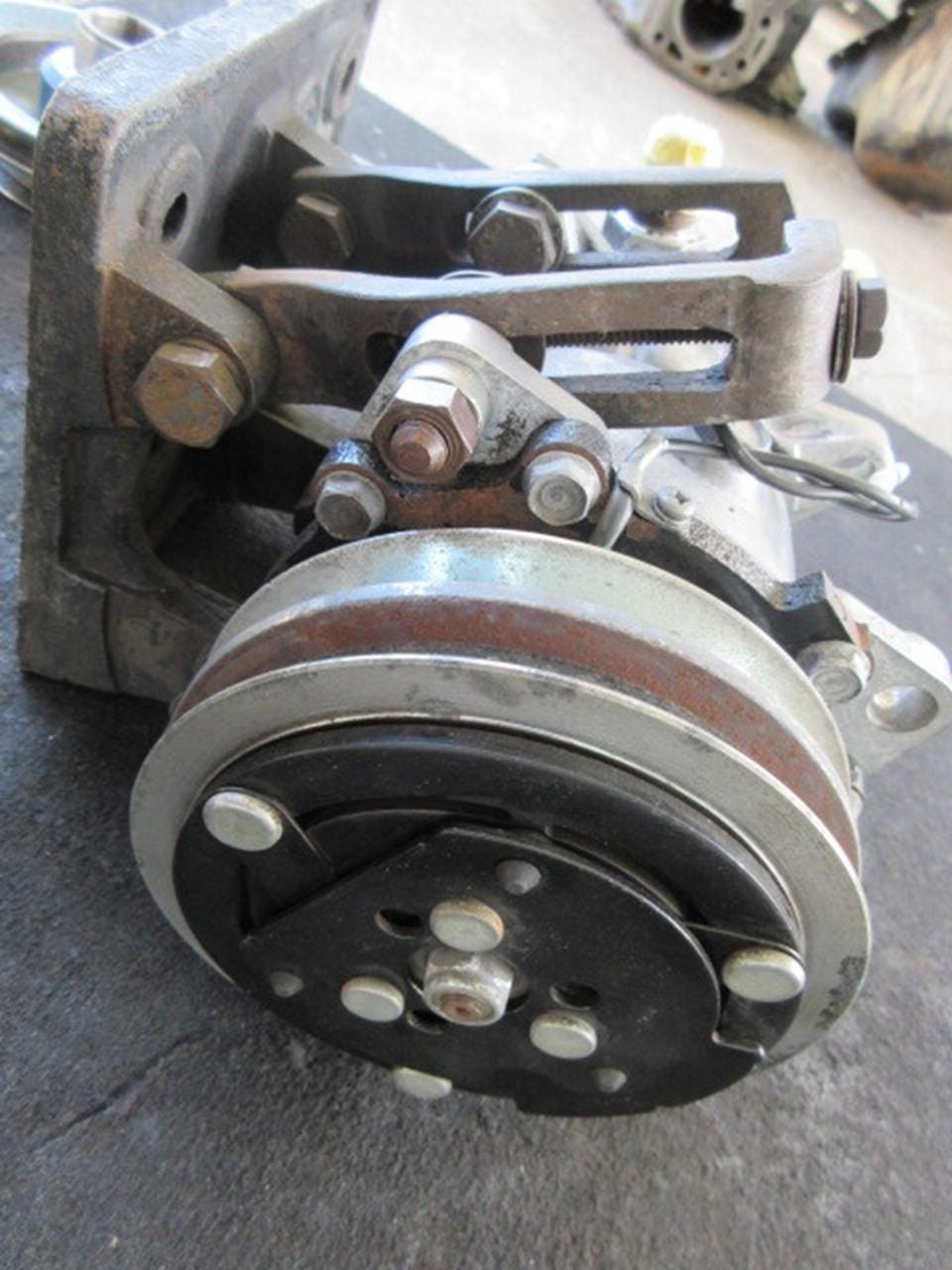

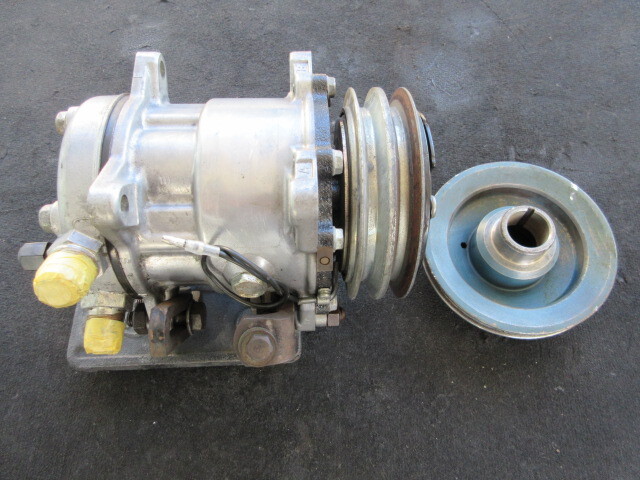

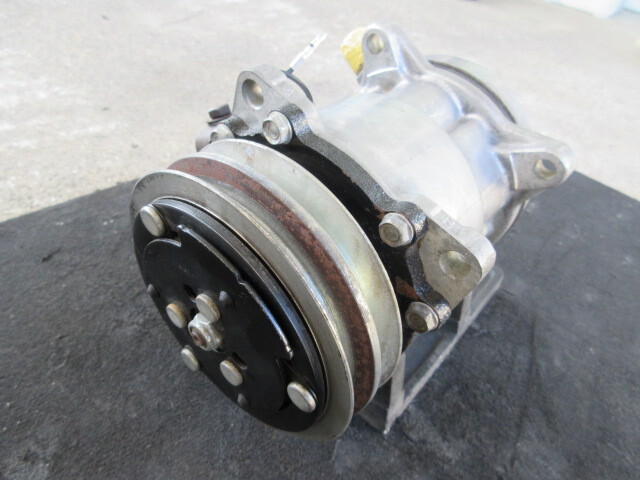

Sanden

Generic axial-type compressor bracket for late A-engine
174_63c632f538f1a.jpgPost click for topic

Universal bracket to replace the square York compressor (USA and AUS original equipment) with a modern lightweight Sanden compressor is $60 at Summit Racing. May be adaptable to early/late A-engine?

York-to-Sanden adapter
174_5c45a548354f8.jpgPost click for topic

174_5c45a5529a62a.jpgPost click for topic

B210

B210 Japan early (1973-1975)
25501.jpgAlbum click to view

1976 two-piece bracket
28741.pngAlbum click to view

1977 one-piece bracket Type H74 (also used by early #B310)
28739.pngAlbum click to view

B210 JAPAN LATE (1976-1977)
11910-H7401 BRACKET-COMPRESSOR A12,A14
11925-M3000 PULLEY ASSY-IDLER COMPRESSOR A12,A14 -7612
11925-M3001 PULLEY ASSY-IDLER COMPRESSOR A12,A14 7701-
27630-H7402 COMPRESSOR-COOLER A12,A14

120Y

'5 SPEED DATSUN 120YCCC'
17554_5806e01fac29e.jpgPost click for topic

B310

H74 Type (late #B210/early B310)
28739.pngAlbum click to view

B310 JAPAN LATE (1976-1977)
11910-H7401 BRACKET-COMPRESSOR -8010
11910-H8661 BRACKET-COMPRESSOR 8011-
27630-H8501 COMPRESSOR-COOLER [with clutch]
27631-U9602 COMPRESSOR UNIT DKKC
27633-H8500 CLUTCH ASSY-COMPRESSOR
28738.pngAlbum click to view

Vanette

C120 Vanette A15 mounts below oil pan rail
593072-5300.jpg 593072-5300_.jpg C120_A15_ac1.jpg C120_A15_ac2.jpg

Late Block Bracket Pattern

This was patterned off an A15 block in Australia, it should be close enough to get you started. The bolts on my block are 3/8" x 16 TPI UNC with about 25mm of thread depth.

NOTE: A-series uses M10 bolts alloy steel (10.9 strength)

also see Block_Comparison#23474 for block photo & measurements
27774.jpgAlbum click to view

B310 JDM CATALOG C-403 page 479 1983.9
11910-H7401 -8010 bracket
11910-H8661 -8011 bracket
08131-03510 BOLT M10x35, alloy steel [9T hi-strength]

another measurement (in millimeters)
28304.jpgAlbum click to view

Part Numbers

JDM B120
FOR YORK-TYPE COMPRESSOR (1978)
* 11910-G1661 BRACKET A
* 11911-G1661 BRACKET B
* 11925-A0100 IDLER PULLEY
* 11933-A0100 ADJUSTER NUT
* 11917-M0100 ADJUSTER BOLT
JDM B120
FOR RADIAL COMPRESSOR (1979-_)
* 11910-G1615 BRACKET 7908-8910
* 11910-95W00 BRACKET 8910-
* 11925-G1615 IDLER PULLEY
USA B310 used either York USA-source or similar Hitachi compressor
11910-H9100 BRACKET-COMPRESSOR -0678
11910-H9101 BRACKET-COMPRESSOR 0778-
11910-H9900 BRACKET-COMPRESSOR 0879-
JDM B310 used DKKC radial compressor
11910-H7401 -8010 BRACKET-COMPRESSOR
11910-H8661 8011- BRACKET-COMPRESSOR
11925-H8900 IDLER PULLEY
JDM A10 A14
11910-H7401 BRACKET-COMPRESSOR -8003
11910-G2500 BRACKET-COMPRESSOR 8004-
11925-H8900 IDLER PULLEY 7804-
11925-M3001 IDLER PULLEY -7803
11925-W0400 IDLER PULLEY 7906- A14,Z16/Z18
11926-W0400 BRACKET-IDLER PULLEY 7906-
JDM C120
11910-G2500 BRACKET-COMPRESSOR 8106-8210
11910-G3400 BRACKET-COMPRESSOR A 8210-
11911-G3400 BRACKET-COMPRESSOR B 8210-
11910-G3401 BRACKET-COMPRESSOR 8407-
11925-H8900 IDLER PULLEY
JDM C22 - high-mount pulley bracket
11910-G5100 BRACKET-COMPRESSOR
11910-G5110 BRACKET-COMPRESSOR
11925-H8900 IDLER PULLEY
