Category: Body
Badges overview
1200 Sedan - 1200 Coupe - 1200 Truck
Excellent: PB110 - PB210/GB210
B10 Badges B310 Badges
Japan B210 badges
Export B210 badges

Contents

[edit]

Overview

Grille #Center Ornament
Grille #Left Side Badge (trim badge)

Side #C-pillar trim badge
Side #Rear Quarter name badge

Rear #Model badge (Datsun or Sunny)
Rear #Trim badge (Deluxe, GL or GX)
Rear #Transmission badge (Sports or Automatic)

16673.jpgAlbum click to view 16134.jpgAlbum click to view 17765.jpgAlbum click to view 9928.jpgAlbum click to view 758.jpgAlbum click to view 20863.jpgAlbum click to view 20862.jpgAlbum click to view

South Africa GX badges
10248.jpgAlbum click to view

[edit]

Grille

20869.jpgAlbum click to view

[edit]

Center Ornament

#Early Center Ornament 62312-H1626 ('D') and 62312-H1026 ('S')
11318.jpgAlbum click to view

#1972 Center Ornament
22828.jpgAlbum click to view

[edit]

Early Center Ornament

Early center ornament 62312-H1626 ('D') and 62312-H1026 ('S')
24321.jpgAlbum click to view 11318.jpgAlbum click to view

19527.jpgAlbum click to view 11793_4a2f681382129.jpgPost click for topic 21120.jpgAlbum click to view 737.jpgAlbum click to view 24563.jpgAlbum click to view

[edit]

1972 Center Ornament

Facelift grille 62312-H3125 ornament Late JDM intricate "S"

62312-H3100 cast mark
62312-H3100.jpg 62312-H3100_.jpg

752.jpgAlbum click to view 22828.jpgAlbum click to view 7522.jpgAlbum click to view 13057.jpgAlbum click to view bfsjq597-img600x450-1293012459v70sxm12525.jpg S_badge_reverse.jpg bfsjq597-img600x450-1293012459yvrlgd12525.jpg bfsjq597-img600x450-1293012459er55u512525.jpg

457.jpgAlbum click to view

retrofitted to early grille
23190.jpgAlbum click to view

[edit]

Grille Left Side Badge

DX early - no trim badge on grille

DX 1972 #62330-H3125 EMBLEM SET-radiator grille "DELUXE"

GL early #62330-H2026

GL 1972 #62330-H3325 EMBLEM SET-radiator grille "GL"

GX early #62330-H2325 COUPE, SEDAN

GX 1972 #62330-H3425 EMBLEM SET-radiator grille "GX"

1972 GX5 62330-H7225 EMBLEM SET-radiator grille "GX 5 SPEED"

[edit]

62330-H2325

GX early (1970-1971) COUPE, SEDAN grille badge
18053.jpgAlbum click to view

Compare to rear see-through badge

grille badge has long studs for mounting through the grille
62330-H2325.jpg 62330-H2325_.jpg

contrast with rear sedan badge which has flush-mount pins

6420_5c245be860d51.jpgPost click for topic 6420_5c245c9d038d3.jpgPost click for topic 6420_5c245ca5bcc0b.jpgPost click for topic 6420_5c245cacd7d00.jpgPost click for topic

GX-grille-badge-2.jpg GX-grille-badge-1.jpg yunakiti-img600x450-1277628693ok47g777311.jpg yunakiti-img600x450-1277628693ybadxo77311.jpg yunakiti-img600x450-1277628693qqw7ym77311.jpg 62330-H2225.jpg 62330-H2225_reverse.jpg gx_grille_badge-1.jpg gx_grille_badge-2.jpg gx_grille_badge-3.jpg 27477.jpgAlbum click to view

If the mounting bracket is lost, a length of plumbers tape will do the job (metal strapping tape)
gxba.jpg gxbb.jpg gxbc.jpg

[edit]

GX flat badge

This modern GX badge has no pins. It has a design like the early GX front trim badge (with the same black background) but is designed for stick-on applications so won't easily fit the 1200 sedan or coupe grilles. Has sticky tape on the flat back of the emblem.

27825.jpgAlbum click to view 27826.jpgAlbum click to view 27827.jpgAlbum click to view

[edit]

62330-H2026

62330-H2026 EMBLEM-'GL' (early coupe + early sedan)
20864.jpgAlbum click to view 27822.jpgAlbum click to view

screw-on type (rear GL badge is push-in type)
gl-GRILLE-badge.jpg GL-grille-1.jpg GL-grille-2.jpg

[edit]

62330-H3125

EMBLEM SET-radiator grille "DELUXE" [1972]

7522.jpgAlbum click to view 25974.jpgAlbum click to view

compare to rear badge 84823-H1000
22513.jpgAlbum click to view

[edit]

62330-H3325

GL 1972 - 62330-H3325 EMBLEM SET-radiator grille "GL" (1972 sedan, coupe)
28127.jpgAlbum click to view

compare to early rectangular GL badge #62330-H2026
20864.jpgAlbum click to view

Grille badge has long studs for mounting through the grille.
28132.jpgAlbum click to view

Backing plate is either simple flat or the stronger ridged type
28128.jpgAlbum click to view 28129.jpgAlbum click to view 28131.jpgAlbum click to view

original white paint | with paint faded away
28130.jpgAlbum click to view 28133.jpgAlbum click to view

Cast mark "62330-H3300"
28134.jpgAlbum click to view

placed on 1972 sedan grille
1523.jpgAlbum click to view 457.jpgbrochure 28135.jpgAlbum click to view

[edit]

62330-H3425

GX 1972 62330-H3425 EMBLEM SET-radiator grille "GX" SEDAN, COUPE

Has long pins and a bracket -- in order bolt it to the grill
25658.jpgAlbum click to view

compare to 1970-1971 'GL' expanded font

compare to rear see-through badge (short pins)

16719.jpgAlbum click to view

[edit]

Side

20868.jpgAlbum click to view

[edit]

Rear Quarter

#76854-H1600 EMBLEM-'DATSUN' BODY SIDE Sedan, Coupe Export
#76854-H1000 EMBLEM-body side "Sunny" (early '71) Sedan, Wagon
20867.jpgAlbum click to view

Location
14093.jpgAlbum click to view 14094.jpgAlbum click to view

[edit]

76854-H1000

76854-H1000 EMBLEM-body side "Sunny" (early '71) Sedan, Wagon
174_5d5270a05de0e.jpgPost click for topic 174_5d5270c9e99cd.jpgPost click for topic

Similar:
PB110_Badges#Sunny_Quarter_Badge

9998_4d9ca51941ed4.jpgPost click for topic

[edit]

76854-H1600

76854-H1600 EMBLEM-'Datsun' BODY SIDE Sedan, Coupe Export

10578.jpgAlbum click to view 15745.jpgAlbum click to view

3973.jpgCoupe 20843.jpg#Sedan

'Datsun' badge has same three pins as '#Sunny' badge, so it is interchangeable
24320.jpgAlbum click to view 24323.jpgAlbum click to view

[edit]

C-pillar

C-pillar Emblems: #DX, #GL, GX
20866.jpgAlbum click to view

DX: 80mm wide? , GX: 99mm wide?, GL 100mm or 109mm wide?
th_13484.jpg th_18264.jpg th_gl_pins.jpg

#76852-H1000 BADGE-"Deluxe" SEDAN-DX
20848.jpgAlbum click to view

#76852-H2001 BADGE-"GL" SEDAN-GL
23133.jpgAlbum click to view

#76852-H2300/76853-H2300 BADGE-"GX" SEDAN-GX RH & LH
5204.jpgAlbum click to view

[edit]

C-pillar Badge Location

1977 GX
15399.jpgAlbum click to view

1973 DX
6576.jpgAlbum click to view

1970? press photos
751.jpgAlbum click to view 5271.jpgAlbum click to view

[edit]

C-pillar Badge 2-dr Sedan

The C-pillar badges seem to have been put in two different places on the 2-door sedan:

* 1970-1971 - down low
* l972-1973 - a bit higher up

The rear fenders are the same part number, so that's not the difference.

1970 DX Press Photo - below the corner
748.jpgAlbum click to view

1971 - below the corner

1973 at the corner
1973_1200_Sedan.jpg 003_.jpg

[edit]

76852-H1000

76852-H1000 BADGE-"Deluxe" SEDAN-DX
13484.jpgAlbum click to view 20848.jpgAlbum click to view 24325.jpgAlbum click to view 24324.jpgAlbum click to view

Portugal version
26892.jpgAlbum click to view

[edit]

76852-H2001

76852-H2001 BADGE-"GL" SEDAN-GL
23133.jpgAlbum click to view 28120.jpgAlbum click to view 28121.jpgAlbum click to view 28122.jpgAlbum click to view

[edit]

76852-H2300

76852-H2300 BADGE-"GX" (R.H.) SEDAN-GX
76853-H2300 BADGE-"GX" (L.H.) SEDAN-GX

5204.jpgAlbum click to view 15399.jpgAlbum click to view 18264.jpgAlbum click to view gxg1.jpg gxg2.jpg

[edit]

Rear

#Model
#Trim
#Transmission

20870.jpgAlbum click to view 14189.jpgAlbum click to view 750.jpgAlbum click to view 25995.jpgAlbum click to view

[edit]

Model

  • Japan domestic models had 'Sunny' badges as they were sold by Sunny Shop
  • Export models had 'Datsun' badges

20894.jpgAlbum click to view

Left Rear Sunny - UK???

[edit]

84822-H1000

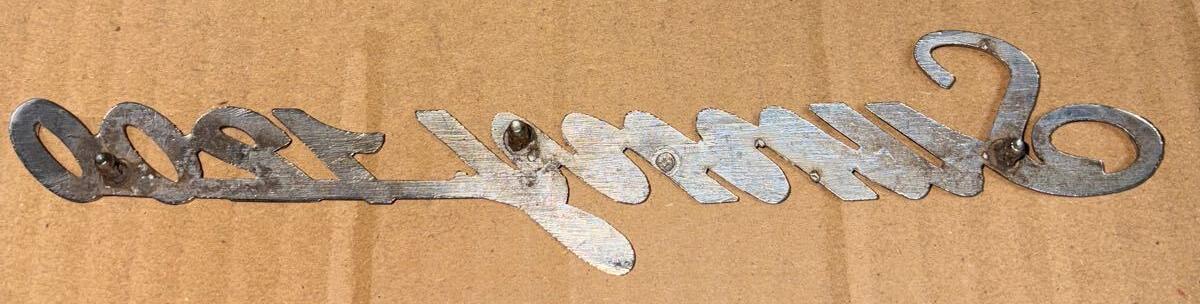

Sunny 1200 - Right Rear
23991.jpgAlbum click to view

[edit]

84822-H1600

84822-H1600 EMBLEM-'DATSUN 1200' TRUNK LID SEDAN
18640.gifAlbum click to view

Datsun 1200 - Right Rear signature
21715.jpgAlbum click to view 15650.jpgAlbum click to view 16745.jpgAlbum click to view 19425.jpgAlbum click to view 24319.jpgAlbum click to view 12129.jpgAlbum click to view datsun_1200_emblem_1_73.jpg 18640.gifAlbum click to view

9998_4d9ce1b0c1d77.jpgPost click for topic 9998_4d9ce1c1e0afe.jpgPost click for topic 9998_4d9ce1cb3f975.jpgPost click for topic 9998_4d9ce1d957c51.jpgPost click for topic 9998_4d9ce1e3104c6.jpgPost click for topic 9998_4d9ce1ec91375.jpgPost click for topic

[edit]

Trim

Left Rear

Deluxe #84823-H1000 Left Rear

GL early #84823-H2001 Left Rear

GL 1972 #84823-H3300 Left Rear

non-1200 GL

GX #84823-H2300 Left Rear

GX 5-Speed 84823-H7200

[edit]

Deluxe Rear

Deluxe 84823-H1000 Left Rear sedan attaches to boot lid
Deluxe_trunk_badge_B110.jpg 26891.jpgAlbum click to view

differs from similar looking front facelift badge

* #DELUXE grille badge: long studs for mounting through grille
*  DELUXE trunk badge: small pins for surface mount

22513.jpgAlbum click to view

21439.jpgAlbum click to view 16172.jpgAlbum click to view 14817.jpgAlbum click to view 24335.jpgAlbum click to view

[edit]

GL Rear 1970-1971

GL early 84823-H2001 Left Rear sedan & coupe
25776.jpgAlbum click to view 25777.jpgAlbum click to view 25660.jpgAlbum click to view 20864.jpgAlbum click to view 174_5d79542f7af02.jpgPost click for topic

[edit]

GL Rear 1972

GL 1972 84823-H3300 Left Rear Facelift sedan & coupe
174_5d775d43af58d.jpgPost click for topic 174_5d7954674ae37.jpgPost click for topic
174_5b348e2e94666.jpgPost click for topic

[edit]

GX Rear

Rear GX "see-through" script. Used in Japan and South Africa markets.
174_5d756dcaab01a.jpgPost click for topic 174_5d756dd73c003.jpgPost click for topic

84823-H2300 trim badge GX MARK 'GX'
* 1970-1972 Japan
* 1974-1976 South Africa

Used by coupe on Right Side
174_5d74ccd7de40e.jpgPost click for topic 11785.jpgAlbum click to view

Used by sedan on Left Side
17111.jpgAlbum click to view 2305.jpgAlbum click to view 25662.jpgAlbum click to view 174_5d756dc157e69.jpgPost click for topic

compare to #front GX badge which is not see-through but has a solid background attached
18053.jpgAlbum click to view

approximately 10cm wide
9930.jpgAlbum click to view 174_5d756dac67030.jpgPost click for topic

Make your own GX badge
23911.jpgAlbum click to view 23912.jpgAlbum click to view 23913.jpgAlbum click to view 23914.jpgAlbum click to view

[edit]

Transmission

  • 3-speed cars did not have a gearbox badge
  • 4-speed cars were badged "Sports"
[edit]

Sports

79200-H1020 MARK-"Sports" sedan 4-speed
79200-H1060 MARK-"Sports", with sealing washer

"Sports" badge - 4-speed Center Rear (left of license plate)
sports_badge.jpg 20865.jpgAlbum click to view 27820.jpgAlbum click to view

"Sports" 4-speed - to right of license plate - 1972 GL Sedan rear
25977.jpgAlbum click to view 755.jpgAlbum click to view

[edit]

Automatic

#79200-H1020 Early "Full Automatic"

79200-H2820 Late "Full Matic" from '71 April (also used by coupe), 79200-H3200 1972
fullmatic.jpgAlbum click to view 26202.jpgAlbum click to view

N22 Coupe badge on sedan ('Nissan Automatic')
26079.jpgAlbum click to view

[edit]

79200-H1020

79200-H1020 Early "Full Automatic"

Used on sedan
174_5d744a228ad84.jpgPost click for topic 9784.jpgAlbum click to view

Used on early Coupe

¤
