Category: Rear Axle And Rear Suspension

A Limited Slip Differential (LSD) prevents one of the rear wheels slipping. A differential is inside the final drive (ring & pinion) gears and allows the left and right wheels to turn at different speeds. This is important of course for going around corners. The downside is that if one wheel is on slippery ground (ice, gravel, mud, etc) the car doesn't go at all, as one wheel is turning but slipping and the other not turning at all. Hence the usefulness of LSD or locking diffentials, which are typically used on high-performance cars. Locking is typically used on off-road vehicles, LSD for road vehicles, including racecars. Most productions cars did not and still do not come equipped with LSD. Less expensive cars (like the 1200) did not even have it as an option, however Datsun Competition sold an LSD that fit Datsun 1200.

Contents

Overview

Limited Slip Differentials come in many different types, but the main thing is they limit wheelspin. This is useful in racing and in low-traction surfaces (rain, snow, etc). Or for maximum accleration at full throttle. Different types of LSD are cone-clutch, spring-loaded, clutch-pack, hydrodynamic (viscous), etc. Some trademarks are "Posi-Traction" (GM), "Traction-Lok" (Ford), Torsen (Bosch).

1652.jpgAlbum click to view 19811.jpgAlbum click to view

A differential is inside the "final drive" (ring & pinion) gears and allows the left and right wheels to turn at different speeds. This is important of course for going around corners. The downside is that if one wheel is on slippery ground (ice, gravel, mud, etc) the car doesn't go at all, as one wheel is turning but slipping and the other not turning at all. Hence the usefulness of LSD or locking diffentials, which are typically used on high-performance cars. Locking is typically used on off-road vehicles, LSD for road vehicles, including racecars.

LSD

Nissan Performance racing parts used to sell a clutch-pack type LSD for the H145, H150 and H165. These parts are NLA, however may be found occasionally in specialty shops or on eBay.

H145

LOM58

Nissan Performance racing parts used to sell an LSD for the 1200 -- H145 LSD (NLA)
1652.jpgAlbum click to view

Nissan Part Number: 38420-H1020 L/S ASSY H145 (TO 8/74)
19811.jpgAlbum click to view lsd145-1.jpg lsd145-2.jpg lsd145-3.jpg

Parts

From the 1984 Nissan Competition Catalog:

H145A LIMITED-SLIP ASSY (TO 8/74)
* 38420-H1020 L/S ASSY
* 38423-H0120 SIDE GEAR (2)
* 38424-H0120 THRUST WASHER (1.0MM) (2)
* 38424-H0120 THRUST WASHER (1.25MM) (2)
* 38425-H0120 PINION (4)
* 38427-H0120 PINION MATE SHAFT
* 38429-H0120 PINION SHAFT
* 38430-H0120 DISTANCE PIECE
* 38431-H0120 PRESSURE RING (2)
* 38437-H0120 CENTER RING
* 38432-H0120 FRICTION PLATE (1.5MM) (2)
* 38432-H0121 FRICTION PLATE (1.45MM) (2)
* 38432-H0121 FRICTION PLATE (1.55MM) (2)
* 38433-H0120 FRICTION DISC (1.5MM) (2)
* 38434-H0120 SPRING DISC (1.5MM) (2)
* 38435-H0120 SPRING PLATE (1.5MM) (2)
* 08320-61000 SCREW (4)

H150

Nissan Performance racing parts used to sell an LSD for H150 -- as used by the 1975-1978 B210 & 1979-1982 B310, part number 38420-RS210. As of 2018, Nissan USA (parts.nissanusa.com) still shows it in the PDF catalog (page 53).
27013.jpgAlbum click to view 15414.jpgAlbum click to view 15415.jpgAlbum click to view 15416.jpgAlbum click to view 15417.jpgAlbum click to view

Occasionally Nismo LSD units are still for sale:

Google search

While this photo shows a 4.375 gearset bolted to it, the LSD unit can be used with any H150 gearset
16207.jpgAlbum click to view 16206.jpgAlbum click to view

Aftermarket H150 LSD by Car Wash
16455.jpgAlbum click to view

Occasionally offered for on Yahoo Auctions Japan like this diff head with LSD installed:
H150_LSD-2.jpg H150_LSD-1.jpg

174_5ae277ce11ca6.jpgPost click for topic 174_5ae27690a4ce9.jpgPost click for topic 174_5ae276b248115.jpgPost click for topic 174_5ae276ce9ed6e.jpgPost click for topic

H150 LSD Parts

Pitroad sells parts to rebuild the H150 LSD.

38433-RS210 Friction Disc (6)
38432-RS210 Friction Plate (4)
38435-RS210 Friction Plate Spring (2)
38436-RS210 Friction Disc Spring NLA

H165

Nismo

LSD 2-way with 24 x 23T splines
38420-N5020 for Type I carriers
 * H165 old type: 3.889 to 4.625 旧型
 * H165B low-tooth: 38420-N5020 3.700 to 4.875 並歯型
38420-RS110 for Type II carriers
* H165B high-tooth: 3.154 to 4.875 高歯型

25641.jpgAlbum click to view

38420-A1260 L/S ASSY (TYPE II)

RS110 - H165B
26665.jpgAlbum click to view 26666.jpgAlbum click to view 26667.jpgAlbum click to view

With custom steel center
7958.jpgAlbum click to view 7968.jpgAlbum click to view

Pitroad/TRD

Pitroad sells a brand new LSD for the H165B axle (1985-up Sunny Truck) for about $1200 USD. It is from TRD (Toyota Racing Development) and is a bolt in when using the AE86 ring gear bolts. Pitroad H165 LSD or TRD

19002.jpgAlbum click to view

You can also buy the AE86 LSD (PN 41301-TA005) direct from TRD, be aware however that this is untested, and probably won't fit most H165 carriers. About $850 USD

15510.jpgAlbum click to view 15511.jpgAlbum click to view

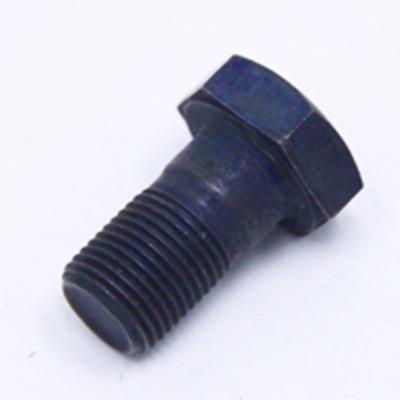

Special stepped bolts can be used with the M10 type H165.
H165-TRD-1.jpg H165-TRD-2.jpg H165-TRD-3.jpg H165-TRD-4.jpg

AE86 Diff Swap

typhoon_0001-img600x450-13372225251fvhdp58789.jpg 6238.jpg

H190

H190 axle assembly from a 320 is narrower than a 1200 axle, so is a good candidate for a swap.

Nismo M-99996-T3011 $600 Detroit Locker

Nismo H190 Limited-Slip Differential units
2759.jpgAlbum click to view

For North America, optional H-190 LSD for the Hardbody when equipped with the Z24 or KA24E (2WD only, Four-cylinder only).

1988-1994 (D21) & 5-1996.5 (D21U)
38420-G7020 DIFFERENTIAL ASSY LSD (OPTION)
38303-10V02 LABEL-DIFFERENTIAL "LSD"
            LABEL-DIFFERENTIAL "USE ONLY LSD OIL"

Pathfinder--D-21conversion034Large.jpg Pathfinder--D-21conversion039Large.jpg

R180

Both Nissan and Cusco sell LSD for the R180 IRS diff

Nissan 38760
38411-20R21 COUPLING ASSY-VISCOUS $584 USD
* Superseded 38411-20R14
* N14 Pulsar/Sunny JDM.SR20DET (RNN14) 1991-1994 [R180]
* M11 USA Axxess 0189-0394 4WD.KA24E.SGL.FA (R180)
* U12 Bluebird 1988-1991
* P10 Primera 1991-1995
Cusco for R180
MZ TYPE-RS No. LSD684 1.5 way Subaru BP/BL (2003-2009 Legacy/Liberty)
MZ 1-way

CA200

Nissan CA200 axle, salisbury type, is an R200 gearset in live axle form.

AC brand for 29 Spline C200 Axle
$580 USD
Will R200 LSD and VLSD fit into CA200?

Phantom Grip

Phantom Grip is an inexpensive LSD, which is spring-loaded LSD instead of the conventional clutch-pack LSD.

See main article: Phantom Grip
3423.jpgAlbum click to view

Depending on how you drive a phantom can last for a long time, to my memory mic had it in a rally car for 2 years then I had it in a road car for bout the same and at the end it started slipping but just needed to be re shimmed.

POST supafatto

Torsen Diff

Torsen differential works on a gearing principal and has no friction plates:

  • Superior limited slip action, unless one wheel loses 100% traction
  • Superb for street suspension or soft racing suspension, where there is little chance of a wheel coming off the ground
  • If a wheel comes off the ground it stops working

For more information, see POST LSD vs Quaife ATB

1.5-way vs 2-way

Nismo sold both 1.5 way and 2 way LSDs. For street use, a 1.5 way is the best way to go.

The 1.5 way is a common LSD for racing as it does not give understeer on de-acceleration through cornering but gives a hard clamping force under hard acceleration, when normally you would break traction.

2-way generally causes understeer and is somewhat like a locked spool. It struggles to turn around in the street, quite similar to a welded diff, with tyres chirping and wheel spin required to get it to turn around.

Factory

Japan

LABEL-DIFFERENTIAL
38308-10V02 LSD/ノンスリシプ デフ シヨウ/リミテッド スリップ デフ シヨウ
* C22/GC22/TC22/C23,D21/WD21/D22,K30,K30S
* VE24/WE24,AC34,JR50,R33,R50,R20,Y60
38420-N9000 4-pinion
* 720 8004-8303 4-pinion
* S110 8204- HE41.FJ20
38420-41W00 2-pinion
* 720 8004-8303 2-pinion
* 720 8303-

North America

D21 C200.Z24I.OP
D21 H233B.(VG30I+VG30E).OP
D21U
R50
S13 R200 VLSD 4WS 1990-
S14 R200 VLSD OP.
WD21
WD22
Z31 R200 VLSD, LSD
Labels:
* 'LSD'
* 'USE ONLY LSD OIL'
* 'VISCOUS LSD'
38303-10V00 LABEL-DIFFERENTIAL 'VISCOUS LSD'
* S13 1991- R200.4WS
38303-10V01 LABEL-DIFFERENTIAL 'LSD'
* D21
* WD21 0889-0292 VG30E.OP
38303-10V02 LABEL-DIFFERENTIAL 'USE ONLY LSD OIL'
* D21
* D21U
* R50
* WD21 H233B+C200
* WD22 VG33E.SE+VG33ER+VG33E.OP
D21U
38420N DIFFERENTIAL ASSY-MECHANICAL LSD
38420-G7020
38420-S9200
38420-T6070 <> 38420-T6073 [C200]

Z31 [R200]
38421S CASE SET-DIFFERENTIAL
38410-40F70 0188 VG30T.SS.MT.F5 $558 USD
* VISCOUS LSD 4-pinion RC37
38421-71S26 0487-0887 VG30T $915 USD
            0887-     VG30T.(GL+GLL)
* LSD 4-pinion RC37

Locking Diffs

A "locking" differential is another animal. When locked there is no slip -- not just limited slip, but none at all. When unlocked, it's the same as an open differential. These are used for racing or for seriously slow off-road work.

Locked diffs are also useful for circuit racing. Many race cars from all sorts of categories use locked diffs. The understeer that is apparent on street/drag cars with locked diffs can easily be eliminated with proper (race) suspension geometry. These settings (camber, castor, and toe) will not be practical for street use though.

L18_B110

There are different types of locking diffs.

Air Locker

The ARB air-locker is popular with Jeeps and other off-roaders. When the dash-mounted switch is flipped, air pressure locks the diff gears together

Detroit Locker

The "Detroit Locker" was used by some high-performance Ford vehicles in the 60s and 70s. The Locker may be the only modern road-going locking differential, as it can automatically lock and unlock. It is sort of a hybrid between an LSD and a Locker.

Spools

For drag racing, the spider gears can be replaced with a sold unit so that both axles are always locked together. This is called a "spool". It is similar to a welded diff, but is a bolt-in part made for this purpose.

8418.jpgAlbum click to view 13997.jpgAlbum click to view 1467.jpgAlbum click to view spool (right center)

Welded Diff

The "poor man's" locking diff is to have the spider gears welded together so that it works like a spool, but is obviously cheaper. The danger is of a bad weld and having it explode on the race track.

Using a spool or welded diff gears on the street is illegal in most countries, and can be dangerous, especially in the wet. The danger is of spinning out as the wheels do not turn independently, but the inside wheel is forced along the same as the outer.

21910.jpgAlbum click to view
