Category: Body

See also: Grease Caps

Standard 1200s had small "dog-dish" style caps. Other trims used full 12" wheel coverings. Remember that all B110s, and even PB110 used 12" Wheels -- so any 13" wheel covers you find are from some other car.



search ダットサンホイールキャップ Datsun wheel cap
search Datsun hubcap

#DX (Deluxe) wheel cover
26329.jpg 269.jpg

#GL wheel cover
26330.jpg 356.jpg

#GX wheel covers. Like Deluxe, but with black-tone center as opposed the all-chrome Deluxe covers
25014.jpg 25661.jpg

#STD "Dog-Dish" hubcaps
19634.jpg wagon_front.jpg

#SSS Datsun 1200 SSS wheels 'jelly bean' aka 'slotted mag' style
B7A43AEED997D340181F3F0930F7622E.jpg 5467.jpgAlbum click to view

Ever Wing wheel cover catalog with "Foil" cover. The largest section is Nissan which shows B10, B110 GL, B210 and other hubcaps.
27859.jpgAlbum click to view 27860.jpgAlbum click to view


Deluxe wheel covers have the design of 5-spokes over a center disc.

Simulated mag-wheel covers

Deluxe 40315-H1100 Cover-wheel DX $61.93
26329.jpgAlbum click to view 269.jpgAlbum click to view 3848.jpgAlbum click to view 12111.jpgAlbum click to view

In the US, DX covers were fitted to Sedans, optional on Coupes.
12110.jpgAlbum click to view 6217.jpgAlbum click to view 122.jpgAlbum click to view 13737.jpgAlbum click to view


Grand Luxe wheel covers are 24-spoke type.

40315-H1800 Cover-wheel GL $59.00
40315-H1801 (Mexican Made) From 0872 NLA

26330.jpgAlbum click to view 356.jpgAlbum click to view

In the US, GL covers were fitted to coupes, optional on sedans.
26331.jpgAlbum click to view 215.jpgAlbum click to view 11133.jpgAlbum click to view 18381.jpgAlbum click to view

6692.jpgAlbum click to view 2209.jpgAlbum click to view


GX wheel covers look like DX wheel covers but have darker center sections

40315-H1900 CAP-road wheel Coupe GX
25014.jpgAlbum click to view 517.jpgAlbum click to view 25015.jpgAlbum click to view

8580.jpgAlbum click to view 8883.jpgAlbum click to view

The centers may be modified for an even darker color
26328.jpgAlbum click to view


STD "dog-dish" style hubcaps (half-wheel type wheel covers).

 chrome 40315-H1000 CAP-road wheel 4S, 4ST, VP
painted 40315-15400 CAP-road wheel 2S, VS

#Type H10 chrome wheel cap
19634.jpgAlbum click to view 19633.jpgAlbum click to view

#Type 154 silver-painted wheel cap
27049.jpgAlbum click to view wagon_front.jpgAlbum click to view

Wheel Cap usage
 B110 Sedan STD
VB110 Van/wagon STD & Semi-DX
 B120 truck until Aug 1979 (both STD & DX)

Internal diameter of hub caps is approx 210mm. Also suits B10 wheels with the 3 weld-on tabs.

Compare to Datsun 1000:

40315-18002 STD
40315-15400 TS [B20 STD]
40315-10600 TD [B20 DX]

Compare to #South Africa cap
16863.jpgAlbum click to view

Type H10

Type H10 chrome wheel cap was new for B110 and fitted to STD 4-door. Also used by Van Semi-DX and on Deluxe Truck through July 1979.

40315-H1000 chrome caps on Deluxe Sunny Truck
736.jpgAlbum click to view 20987.jpgAlbum click to view

H10 chrome has indented center and perimeter lines (fancier stamping than 154 type)
26047.jpgAlbum click to view 19634.jpgAlbum click to view

Type 154

Type 154 wheel cap is silver-painted (instead of chrome). It is also a different, plainer stamping than the H10 cover. Type 154 wheel cover was used by the poverty-pack 1200s: 2-door Sedan STD, Van STD and Truck STD. It was a carryover from the Datsun 1000 B20 truck.
27049.jpgAlbum click to view 27050.jpgAlbum click to view

40315-15400 (silver painted) caps on STD 1200 truck | STD 1000 truck
13942.jpgAlbum click to view B20_introduction.jpg

Van STD 'dog-dish' hubcaps
wagon_front.jpgAlbum click to view 10163.jpgAlbum click to view


Pickup Center Caps

B120 Datsun 1200 Pickup 'D' caps are held in place by the tapered seat of the wheel nuts.
7606.jpgAlbum click to view 16665.jpgAlbum click to view

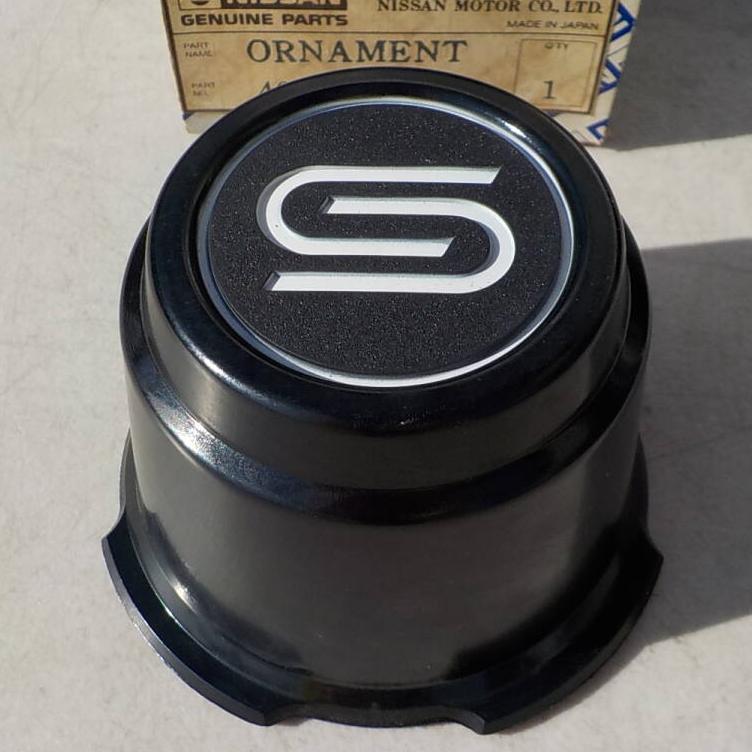

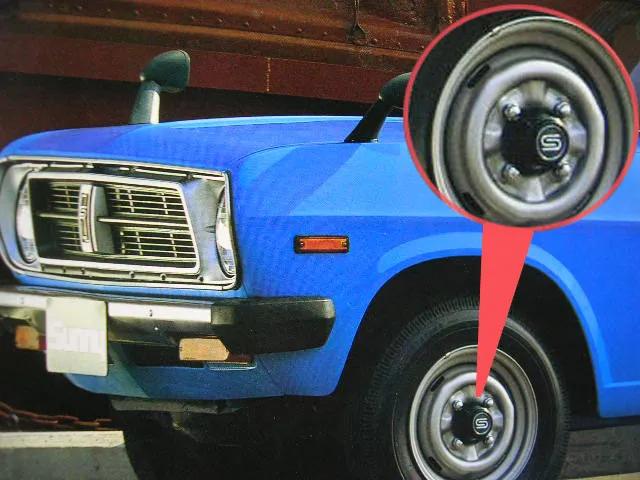

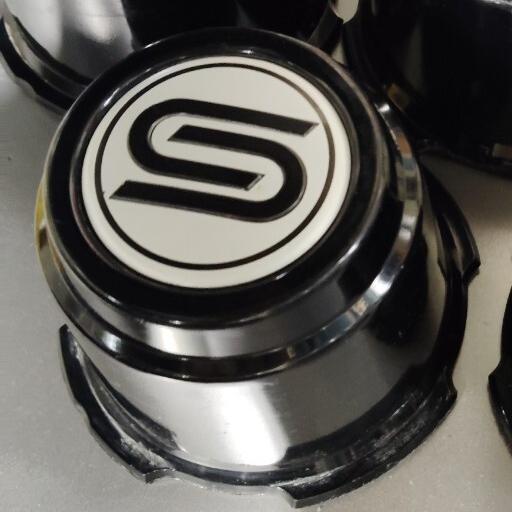

Sunny 1200 "S" caps were fitted from August 1979 (earlier trucks used the dogdish style cap)
s-mark-hub-caps-001.jpg s-mark-hub-caps-002.jpg s-mark-hub-caps-003.jpg

538.jpg 539.jpg 540.jpg

New Zealand

Datsun dealer-installed OPTION wheel trim rings
28052.jpgAlbum click to view

OPTION dealer provide GL-style hubcaps for circa 1982 ute
28053.jpgAlbum click to view

South Africa

16863.jpgAlbum click to view

22417.jpgAlbum click to view 8349.jpgAlbum click to view

22418.jpgAlbum click to view 8350.jpgAlbum click to view

GX on bakkie
16850.jpgAlbum click to view

Variation 2
26209.jpgAlbum click to view 20021.jpgAlbum click to view
19419.jpgAlbum click to view

13" version? (non-1200)

similar to these AUS B210 Hubcaps except with less slots


Sunny Excellent 1400 PB110 wheel covers:

40315-H2601 GL/GX
40315-78500 DX
40315-H2500 DX from 1971-05

GX, GL on whitewall tire, DX (all 12" diameter)
7715.jpgAlbum click to view

40315-78500 early DX
27001.jpgAlbum click to view

PB110 GL/GX wheel cover (12" diameter)
22363.jpgAlbum click to view 6943.jpgAlbum click to view DSCN7679.jpg


POST What do the SSS center caps look like?

The Datsun 1200 SSS came with "jelly bean" aka "slotted mag" style aluminum wheels
478.jpgAlbum click to view 85.jpgAlbum click to view

Don't Confuse These

Any 13" hubcaps are not from Datsun 1200, which even in GX form came with 12" wheels.

Datsun Hubcap guide

40315-25800 B10 coupe hubcaps - slots between 7 chrome rays
0600834A30150407W00119.jpg 7073.jpgAlbum click to view

40315-N7100 13" Datsun 610 Bluebird/180B 9-slot
19702.jpgAlbum click to view 6525_4c271f4bb70ab.jpgPost click for topic

40315-18001 B10 Deluxe 8-slot
476.jpgAlbum click to view b10_hubcap.jpg

13" Datsun 510 1300/1400/1600
7295.jpgAlbum click to view 1072.JPGAlbum click to view

Toyota 12"
1623.jpgAlbum click to view 18018.jpgAlbum click to view

25816.jpgAlbum click to view

Corolla coupe E10/Sprinter E10
B110RockysDSC00638.jpgAlbum click to view 400px-1968_Toyota_Corolla-Sprinter_01.jpgWIKI go to Wikipedia

13" Corolla E36/E55 archive:1976-1979 5-spoke shield star
13849_4c720df90bed0.jpgUpload click to view 400px-1979_Toyota_Corolla_Van_Deluxe_rear.jpgWIKI go to Wikipedia

12" B210 (Sunny,120Y) - See main article: B210 Hubcaps
21099.jpgAlbum click to view 16251.jpgAlbum click to view

12" B310 (Sunny) hubcaps - See main article: B310 Hubcaps
hubcap-.jpg 3916.jpgAlbum click to view


Unknown Datsun 12-slot 6-spoke star
20337.jpgAlbum click to view


POST carps restored his hubcaps:

spent most the night tapping out little dents without scratching the chrome...

13022_4dbeb0b9e5dc7.jpgUpload click to view 13022_4dbeb0c7e9ba1.jpgUpload click to view 13022_4dbeb0d5cf2ca.jpgUpload click to view 13022_4dbeb0e9d0f73.jpgUpload click to view 13022_4dbeb0f2a66bb.jpgUpload click to view 13022_4dbfef3bc9816.jpgUpload click to view 13022_4dbfef49a016f.jpgUpload click to view 13022_4dc1146a275f2.jpgUpload click to view 13022_4e1d5ff5ec7f6.jpgUpload click to view 13022_4e1d600ccb4cb.jpgUpload click to view


B310 center caps (chrome) on your choice of alloy wheels (see B310 Hubcaps)
22341.jpgAlbum click to view

black 1200 pickup center caps or chrome B310 caps
8709.jpgAlbum click to view

Moon discs - see main article: Wheel Discs
